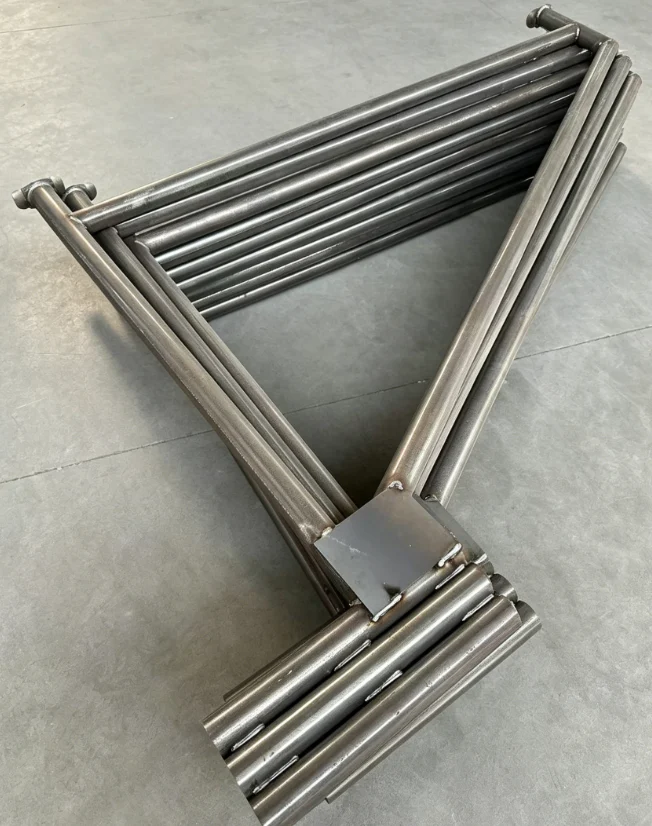

Cuplock Cantilever
Beam Frame
Cuplock Cantilever Beam Frame Specifications
Material Grade
High-tensile structural steel, typically Q235 or Q355
Main Tube Outside Diameter (OD)
48.3 mm
Main Tube Wall Thickness
3.2 mm standard or 4.0 mm heavy-duty
Extension Length Options
1.0 m, 1.2 m, or 1.5 m; custom sizes up to 2.0 m
Connector Type
Drop-forged steel ledger blades with C-shaped ends
Application / Installation
Connects to the Cuplock scaffold structure to support an outward platform extension
Surface Finish/Treatment
Hot-dip galvanized, powder coated, or painted
Cuplock Cantilever Beam Frame Specifications
Material Grade
High-tensile structural steel, typically Q235 or Q355
Main Tube Outside Diameter (OD)
48.3 mm
Main Tube Wall Thickness
3.2 mm standard or 4.0 mm heavy-duty
Extension Length Options
1.0 m, 1.2 m, or 1.5 m; custom sizes up to 2.0 m

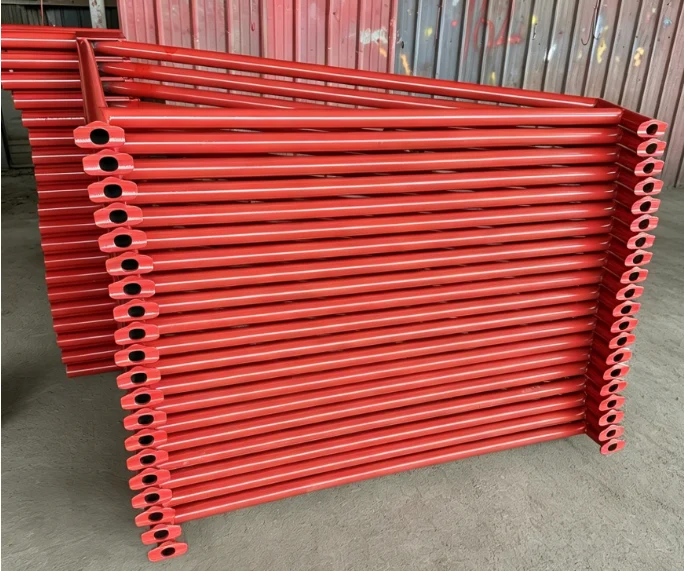

Connector Type
Drop-forged steel ledger blades with C-shaped ends
Application / Installation
Connects to the Cuplock scaffold structure to support an outward platform extension
Surface Finish/Treatment
Hot-dip galvanized, powder coated, or painted
Complete Your Cuplock System
