Cuplock Mid Transom
Cuplock Mid Transom Specifications
Material Grade
High-tensile structural steel, typically Q235 or Q355
Outside Diameter (OD)
48.3 mm O-type tubular steel
Wall Thickness
3.0 mm or 3.2 mm
End Connectors
Welded jaw-shaped saddles (saddle hooks)
Standard Lengths Available
0.9 m, 1.2 m, 1.3 m, 1.8 m, or 2.5 m

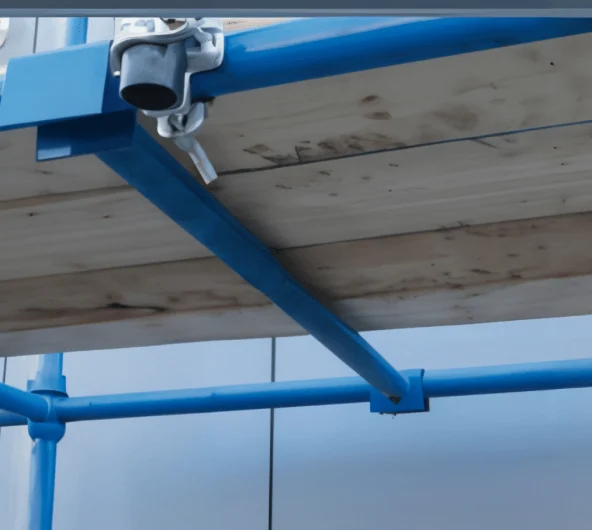

Installation Interface
Sits across and locks onto parallel horizontal ledgers
Compatible System
Cuplock scaffolding systems with matching ledger spacing and connector dimensions
Surface Finish / Protection
Hot-dip galvanized, powder coated, or painted
