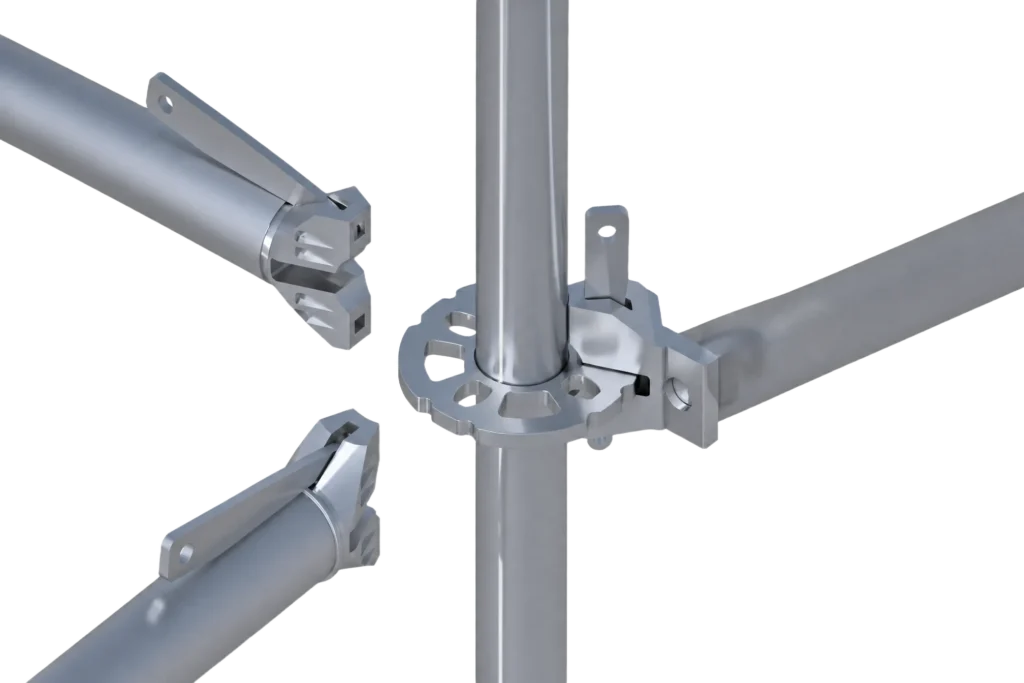

Ringlock Diagonal
Brace
Ringlock Diagonal Brace Specifications
Material Grade
High-tensile structural steel, typically Q235 or Q355
Outside Diameter (OD)
42.2 mm or 48.3 mm, depending on load-class requirements
Wall Thickness
2.0 mm, 2.5 mm, or 3.2 mm

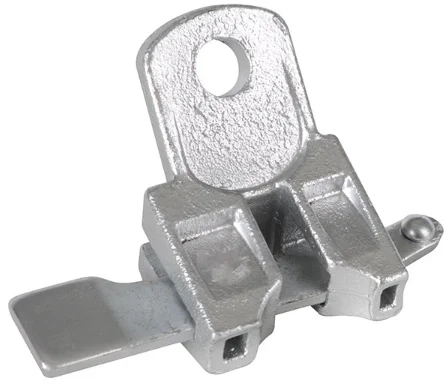

End Connectors
Pivoting swivel cast-steel brace heads with captive wedge pins
Sizing Matrix
Manufactured according to bay length × lift height, e.g. 2.07 m × 2.0 m
Locking Mechanism
Hammer-driven captive wedge inserted into the large rosette holes
Surface Finish /Protection
Hot-dip galvanized (HDG), typical coating thickness 60–80 μm
Ringlock Diagonal Brace Specifications
Material Grade
High-tensile structural steel, typically Q235 or Q355
Outside Diameter (OD)
42.2 mm or 48.3 mm, depending on load-class requirements
Wall Thickness
2.0 mm, 2.5 mm, or 3.2 mm
End Connectors
Pivoting swivel cast-steel brace heads with captive wedge pins
Sizing Matrix
Manufactured according to bay length × lift height, e.g. 2.07 m × 2.0 m
Locking Mechanism
Hammer-driven captive wedge inserted into the large rosette holes
Surface Finish /Protection
Hot-dip galvanized (HDG), typical coating thickness 60–80 μm
