Ringlock Ledger
(Horizontal)
Ringlock Ledger Specifications
Material Grade
High-tensile structural steel, typically Q235 or Q355
Outside Diameter (OD)
48.3 mm standard scaffolding tube
Wall Thickness
2.75mm, 3.0 mm, 3.2 mm, or 3.25 mm
End Connectors
Precision-cast steel ledger heads with captive wedge pins
Standard Lengths Available
0.73m, 1.09m, 1.40m, 1.57m, 2.07m,
2.57m, 3.07m

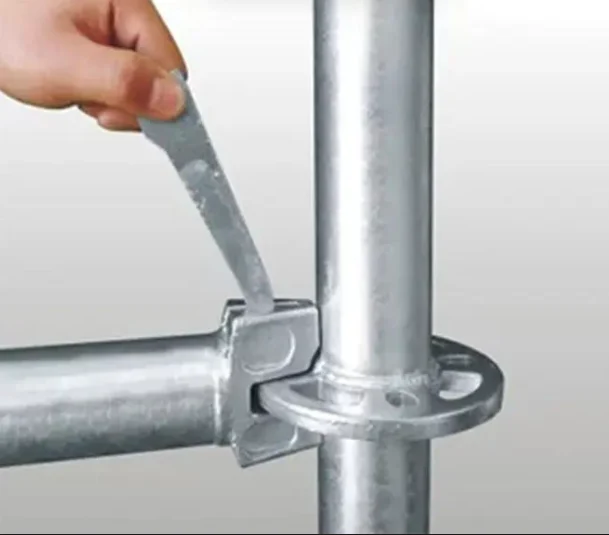

Locking Mechanism
Hammer-driven captive steel wedge inserted into the rosette
Surface Finish /Protection
Hot-dip galvanized (HDG), typical coating thickness 60–80 μm
Ringlock Ledger Specifications
Material Grade
High-tensile structural steel, typically Q235 or Q355
Outside Diameter (OD)
48.3 mm standard scaffolding tube
Wall Thickness
2.75mm, 3.0 mm, 3.2 mm, or 3.25 mm
End Connectors
Precision-cast steel ledger heads with captive wedge pins
Standard Lengths Available
0.73m, 1.09m, 1.40m, 1.57m, 2.07m,
2.57m, 3.07m
Locking Mechanism
Hammer-driven captive steel wedge inserted into the rosette
Surface Finish /Protection
Hot-dip galvanized (HDG), typical coating thickness 60–80 μm
