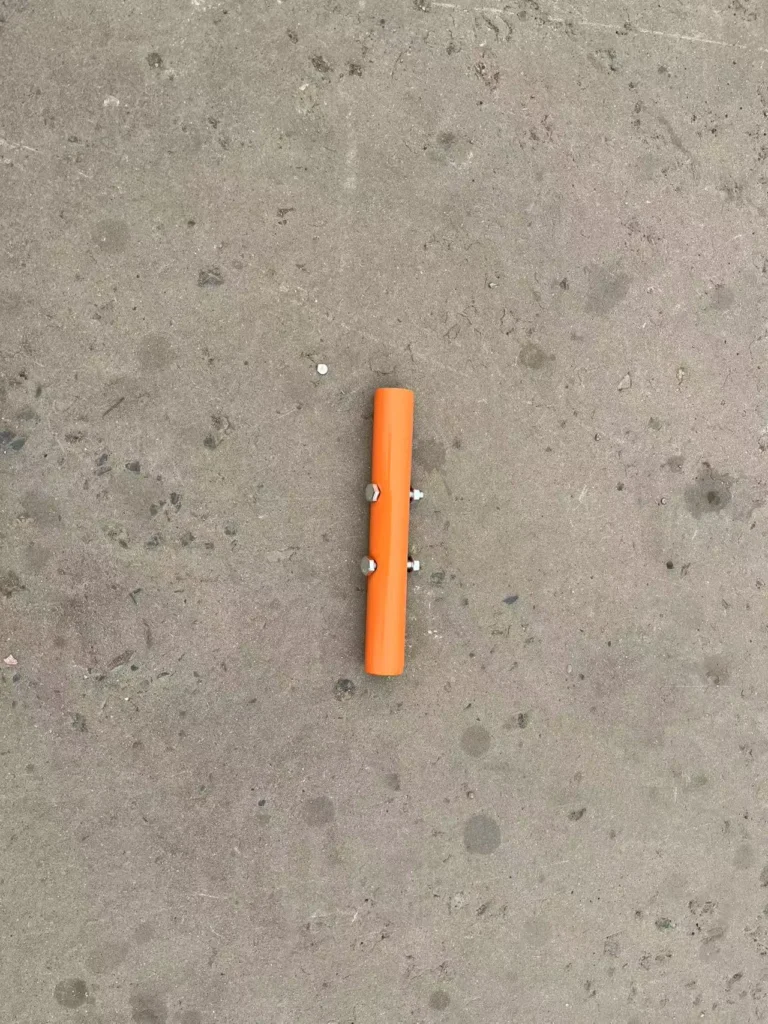

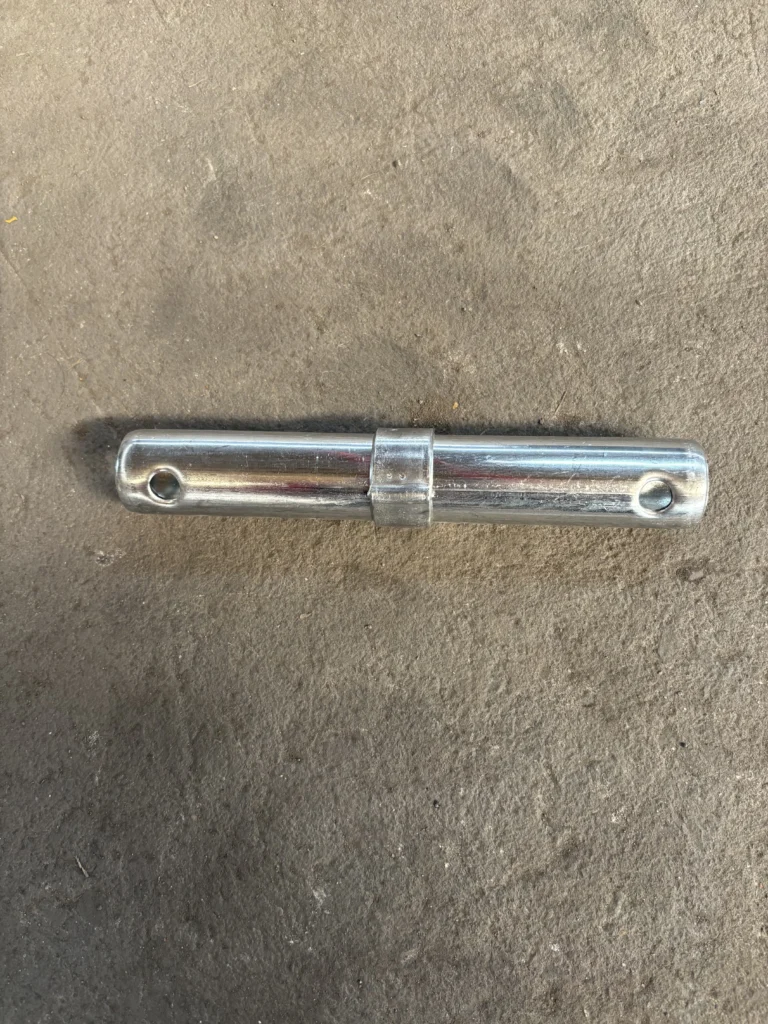

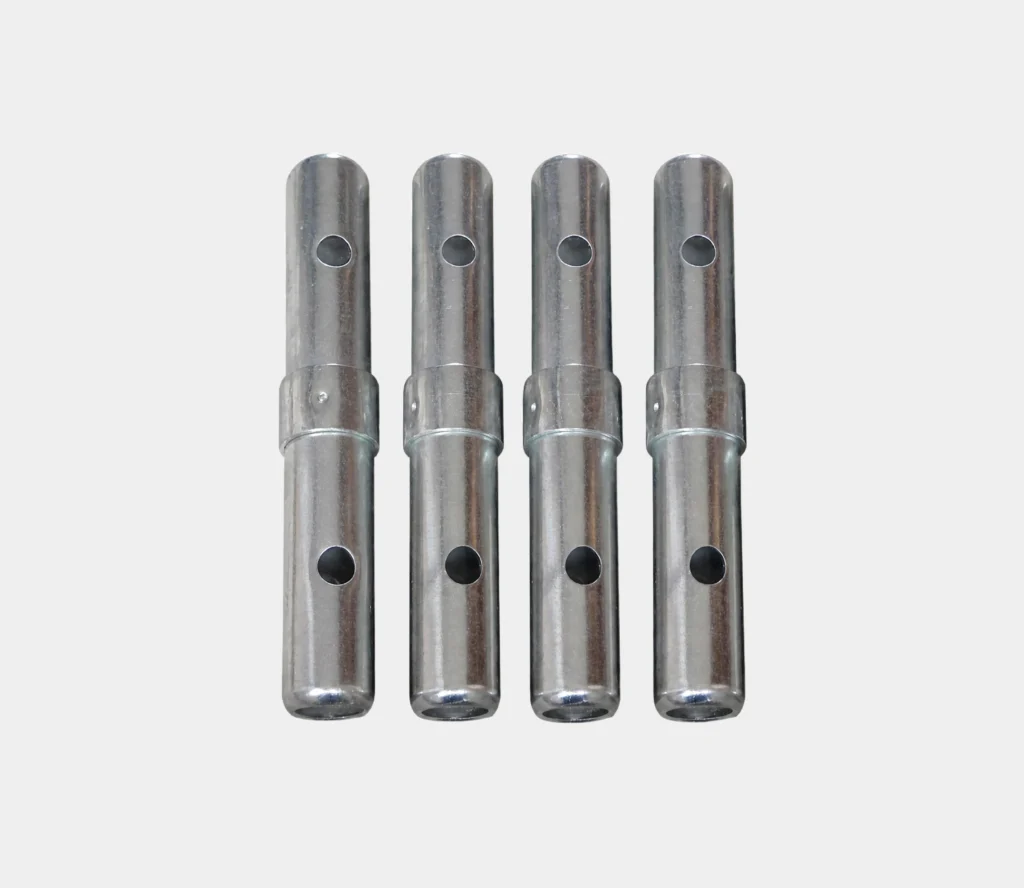

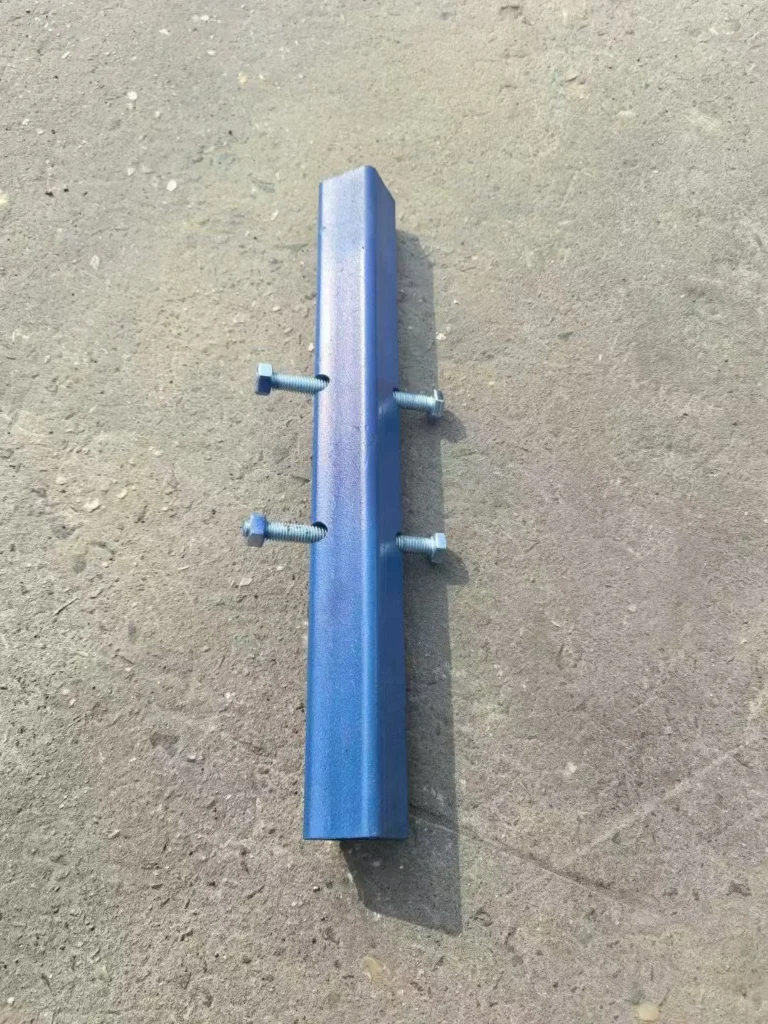

Scaffold Joint Pin
Scaffold Joint Pin Specifications
Product Type
Scaffold joint pin / frame coupling pin
Material Grade
Structural steel, typically Q235 or Q355
Pin Outside Diameter (OD)
34mm, 35mm, 36mm, or customized to match the scaffold frame leg
Tube Wall Thickness
Produced according to the approved drawing
Overall Length
210 mm or 225 mm, depending on frame design
Collar Type
Round center collar
Retaining Hole Diameter
12 mm or 13 mm, depending on the locking system
Surface Finish / Protection
Electro-galvanized, hot-dip galvanized, powder coated, or painted
