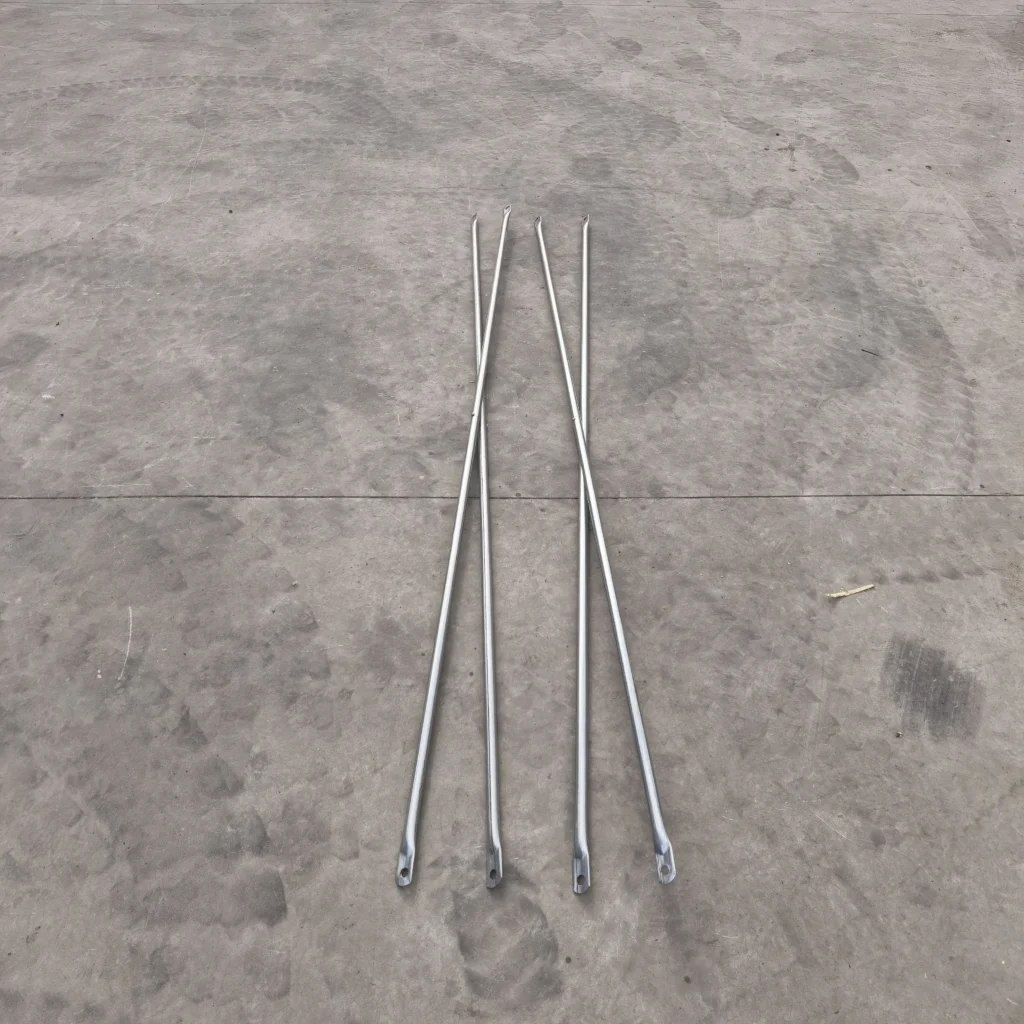

Frame Scaffolding Cross Brace
Frame Scaffolding Cross Brace Specifications
Product Type
Frame scaffolding cross brace / X-brace
Material Grade
Structural steel, available in Q195, Q235, or Q355
Tube Outside Diameter (OD)
25.4 mm (1.0 in) or 32.0 mm (1.25 in)
Wall Thickness
1.2 mm, 1.5 mm, or 1.8 mm
Horizontal Span
1,829 mm (6 ft), 2,133 mm (7 ft), or 3,048 mm (10 ft)
Vertical Connection Spacing
610mm (2') / 1219mm (4')

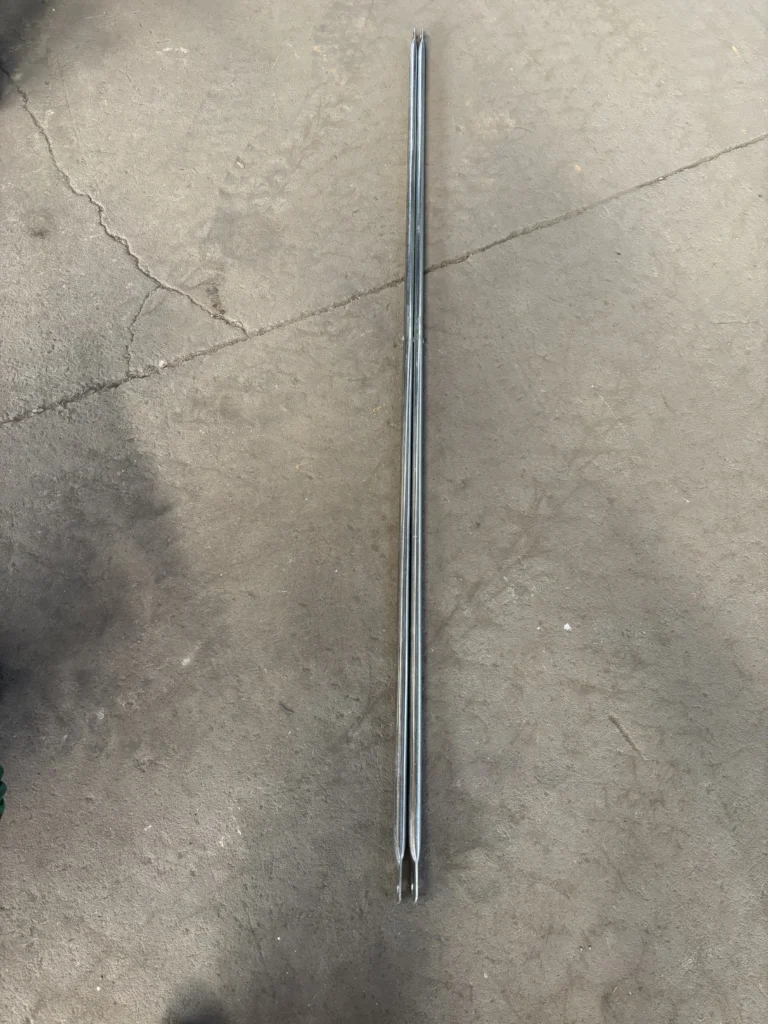

End Connection
Pressed ends with punched holes for compatible frame lock pins
Surface Finish / Protection
Galvanized, powder coated, or painted
Application
Connecting two scaffold frames to provide diagonal bay bracing and stability
